- Place of Origin: Guangdong, China (Mainland)
- Brand Name: ORT
- Model Number: ORT-C13IP-8-CB
- color: black
- size: 482.6X100X70mm (19 inch)
- Cable specification: 3G 1.5mm2*2 meter
- Max input current: 10A
- Max output power: 2.5KW
- Shell material: Aluminum alloy
- Mounting method: Vertical installation
- Application: Industrial PDU
- Certificate: CE ROHS SGS
- Product Name: C13 Intelligent PDU
Packaging & Delivery
|Delivery Detail:||about 3-5 days|
1.2 Main function:
1.the total load current monitoring
2.the total input voltage monitoring
3.the total load power monitoring
4.The total power factor monitoring
5.the total electricity consumption monitoring
6.The output unit current monitoring
7.The output unit power monitoring
8.the environmental temperature and humidity monitoring
9.The total load current upper and lower limit settings
10.Each port remote control on/off

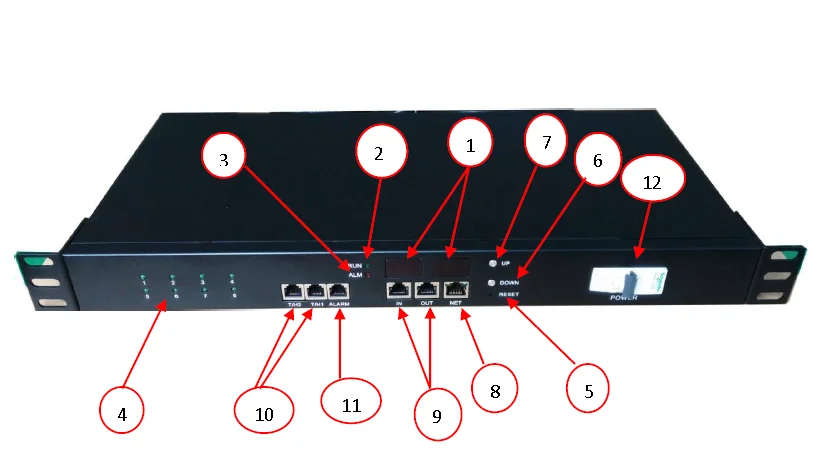

1, The digital tube display
2, Running lamp
3, ALARM abnormality lamp
4, The output unit LEDs
9, Cascade interface
10, The temperature and humidity interface
11, External buzzer port
12, Mini circuit breaker

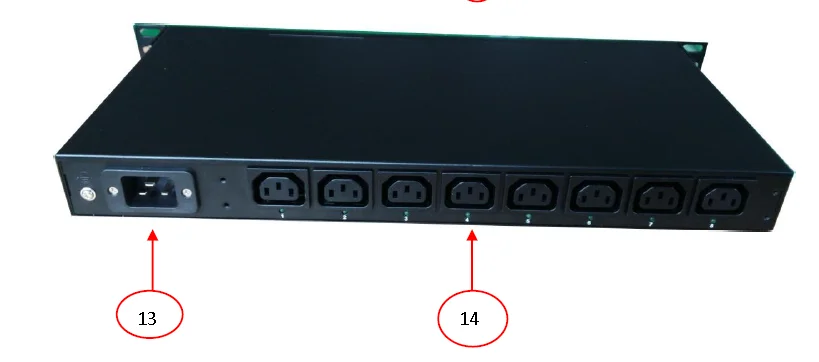

13, C20 input
14, 8 port C13 output
2.1, boot interface
First screen: total current
The second screen: total voltage
The third screen: the total power
Fourth screen: power factor
Fifth screen: Total energy
Sixth screen: temperature 1
Seventh screen: temperature 2
Eighth screen: Humidity 1
Ninth screen: humidity 2
Tenth screen: IP-192
Eleventh screen: IP-168
Twelfth screen: IP-0
Thirteenth screen: IP-163
2.2 button operation
Through the UP and DOWN keys to switch with the first to thirteenth screen display.
By holding down the UP button to restore the factory settings.
3.1 HTTP visit
HTTP login screen, enter the browser address bar 192.168.0.163
3.2 The home page displays
The total current, the total voltage, the total power, power factor, total electric energy, temperature, humidity;
By selecting PDU switching to view the state of host and the sub-machine.
By choosing Line, switching view L1, L2, L3; three-phase current parameters.
3.3 Threshold configuration
Total current setting, the total voltage bound setting(170-276),total current restrictions on the range of (0-32),through the Save button to save the set value.
By selecting PDU switching to view the host and sub- machine and set restrictions.
By choosing Line, switching view L1, L2, L3; three-phase current and voltage limit set;
3.4 Sensor Configuration
Only can add a temperature / humidity sensor, you can set the temperature / humidity minimum and maximum values, through the Save button to save the set value;
By selecting PDU switching to view the host and sub- machine and set restrictions
3.5 The electricity Consumption configuration
Check L1, L2, L3 each phase power, clear the Power Recorder by reset button
3.6 System configuration
Look for the MAC address;
IPV4 address, IPV4 subnet mask, IPV4 default gateway, IPV4 DNS server settings;
NOTE: The factory default
IPV4 address: 192.168.0.163
IPV4 Subnet Mask: 255.255.255.0
IPV4 default gateway: 192.168.0.1
IPV4 DNS server: 188.8.131.52
Please fill in the correct DNS server address, if wrong, will affect the SMTP service;
3.7 Mail Service
The default set up SMTP client, exception information can be sent to email after filling out outbox account, password, server and port number.
NOTE: Inbox account please fill in the user profile;
The default set up SMTP client can send ordinary mail message, cann’t send an encrypted message.
3.8 Telnet configuration
Telnet access configuration, drop-down menu, select On or disable the Telnet server.
Open Telnet server, please fill in the Telnet login account password, click Save, through Telnet client login server.
3.9 Device Configuration
Switch modes: drop-down menu, select the operating mode, the optional host mode or deputy mode
SNMP Name: Set the device name, can identify the device during the SNMP access.
HTTP access: HTTP access port number, the default is 80
3.10 User Management
The software defaults to single-user mode, account number and password can be modified
Email: to receive the abnormal infos.
